Tesseract Collision Package¶

Background¶

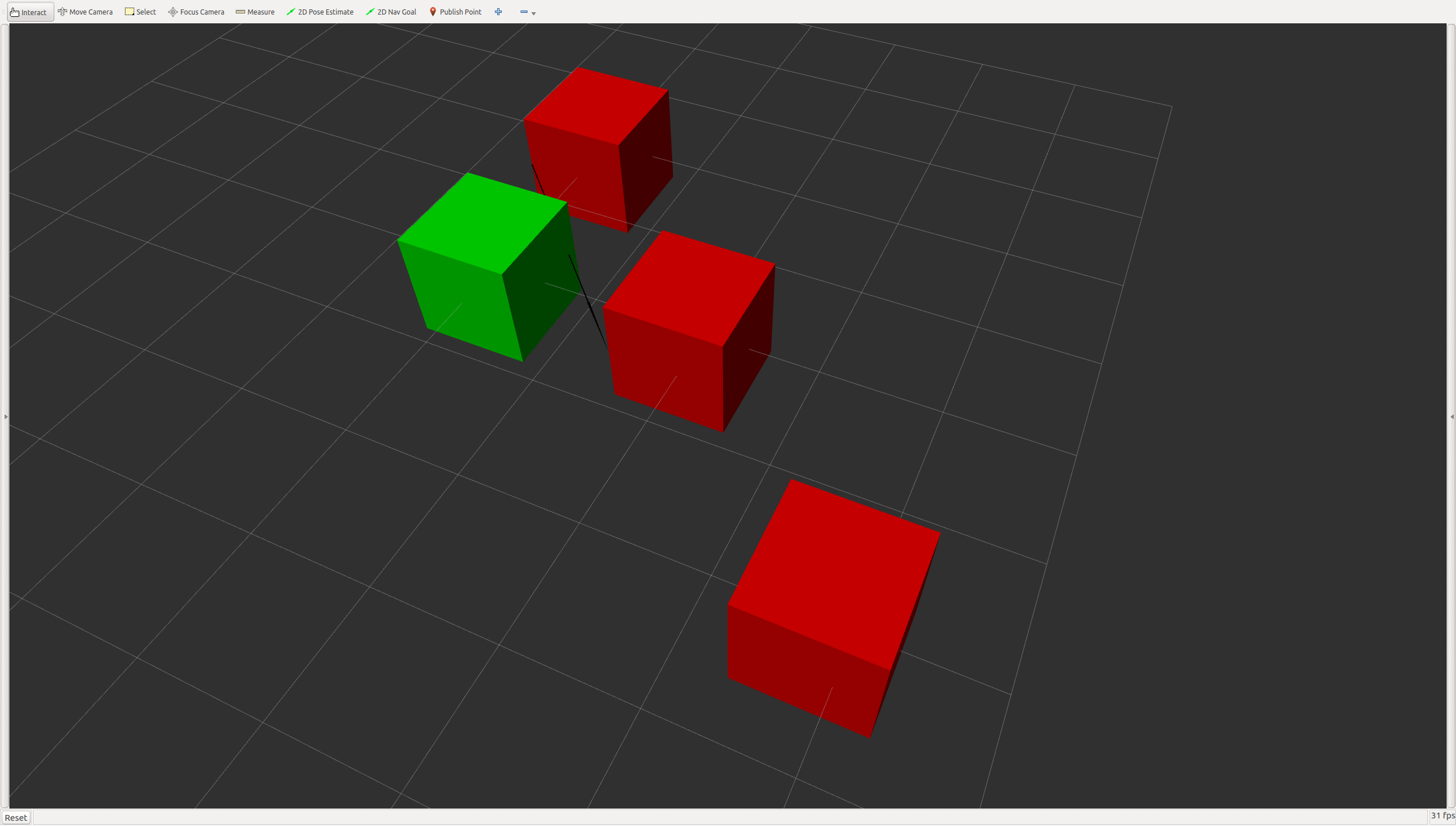

This package is a used for performing both discrete and continuous collision checking. It understands nothing about connectivity of the object within. It purely allows for the user to add objects to the checker, set object transforms, enable/disable objects, set contact distance per objects and perform collision checks.

Features¶

Add/Remove collision objects consisting of multiple collision shapes.
Enable/Disable collision objects
Set collision objects transformation
Set contact distance threshold. If two objects are further than this distance they are ignored.
Perform Contact Test with various exit conditions
- Exit on first tesseract::ContactTestType::FIRST
- Store only closets for each collision object tesseract::ContactTestType::CLOSEST
- Store all contacts for each collision object tesseract::ContactTestType::ALL

Discrete Collision Checker Example¶

#include <console_bridge/console.h>
#include "tesseract_collision/bullet/bullet_discrete_bvh_manager.h"

using namespace tesseract_collision;
using namespace tesseract_geometry;

std::string toString(const Eigen::MatrixXd& a)
{
  std::stringstream ss;
  ss << a;
  return ss.str();
}

std::string toString(bool b) { return b ? "true" : "false"; }

int main(int /*argc*/, char** /*argv*/)
{
  // Create Collision Manager
  tesseract_collision_bullet::BulletDiscreteBVHManager checker;

  // Add box to checker
  CollisionShapePtr box(new Box(1, 1, 1));
  Eigen::Isometry3d box_pose;
  box_pose.setIdentity();

  CollisionShapesConst obj1_shapes;
  tesseract_common::VectorIsometry3d obj1_poses;
  obj1_shapes.push_back(box);
  obj1_poses.push_back(box_pose);

  checker.addCollisionObject("box_link", 0, obj1_shapes, obj1_poses);

  // Add thin box to checker which is disabled
  CollisionShapePtr thin_box(new Box(0.1, 1, 1));
  Eigen::Isometry3d thin_box_pose;
  thin_box_pose.setIdentity();

  CollisionShapesConst obj2_shapes;
  tesseract_common::VectorIsometry3d obj2_poses;
  obj2_shapes.push_back(thin_box);
  obj2_poses.push_back(thin_box_pose);

  checker.addCollisionObject("thin_box_link", 0, obj2_shapes, obj2_poses, false);

  // Add second box to checker, but convert to convex hull mesh.
  CollisionShapePtr second_box;

  tesseract_common::VectorVector3d mesh_vertices;
  Eigen::VectorXi mesh_faces;
  loadSimplePlyFile(std::string(DATA_DIR) + "/box_2m.ply", mesh_vertices, mesh_faces);

  // This is required because convex hull cannot have multiple faces on the same plane.
  std::shared_ptr<tesseract_common::VectorVector3d> ch_verticies(new tesseract_common::VectorVector3d());
  std::shared_ptr<Eigen::VectorXi> ch_faces(new Eigen::VectorXi());
  int ch_num_faces = createConvexHull(*ch_verticies, *ch_faces, mesh_vertices);
  second_box.reset(new ConvexMesh(ch_verticies, ch_faces, ch_num_faces));

  Eigen::Isometry3d second_box_pose;
  second_box_pose.setIdentity();

  CollisionShapesConst obj3_shapes;
  tesseract_common::VectorIsometry3d obj3_poses;
  obj3_shapes.push_back(second_box);
  obj3_poses.push_back(second_box_pose);

  checker.addCollisionObject("second_box_link", 0, obj3_shapes, obj3_poses);

  CONSOLE_BRIDGE_logInform("Test when object is inside another");
  checker.setActiveCollisionObjects({ "box_link", "second_box_link" });
  checker.setContactDistanceThreshold(0.1);

  // Set the collision object transforms
  tesseract_common::TransformMap location;
  location["box_link"] = Eigen::Isometry3d::Identity();
  location["box_link"].translation()(0) = 0.2;
  location["box_link"].translation()(1) = 0.1;
  location["second_box_link"] = Eigen::Isometry3d::Identity();

  checker.setCollisionObjectsTransform(location);

  // Perform collision check
  ContactResultMap result;
  ContactRequest request(ContactTestType::CLOSEST);
  checker.contactTest(result, request);

  ContactResultVector result_vector;
  flattenResults(std::move(result), result_vector);

  CONSOLE_BRIDGE_logInform("Has collision: %s", toString(result_vector.empty()).c_str());
  CONSOLE_BRIDGE_logInform("Distance: %f", result_vector[0].distance);
  CONSOLE_BRIDGE_logInform("Link %s nearest point: %s",
                           result_vector[0].link_names[0].c_str(),
                           toString(result_vector[0].nearest_points[0]).c_str());
  CONSOLE_BRIDGE_logInform("Link %s nearest point: %s",
                           result_vector[0].link_names[1].c_str(),
                           toString(result_vector[0].nearest_points[1]).c_str());
  CONSOLE_BRIDGE_logInform("Direction to move Link %s out of collision with Link %s: %s",
                           result_vector[0].link_names[0].c_str(),
                           result_vector[0].link_names[1].c_str(),
                           toString(result_vector[0].normal).c_str());

  CONSOLE_BRIDGE_logInform("Test object is out side the contact distance");
  location["box_link"].translation() = Eigen::Vector3d(1.60, 0, 0);
  result = ContactResultMap();
  result.clear();
  result_vector.clear();

  checker.setCollisionObjectsTransform(location);

  // Check for collision after moving object
  checker.contactTest(result, request);
  flattenResults(std::move(result), result_vector);

  CONSOLE_BRIDGE_logInform("Has collision: %s", toString(result_vector.empty()).c_str());

  CONSOLE_BRIDGE_logInform("Test object inside the contact distance");
  result = ContactResultMap();
  result.clear();
  result_vector.clear();

  // Set higher contact distance threshold
  checker.setContactDistanceThreshold(0.25);

  // Check for contact with new threshold
  checker.contactTest(result, request);
  flattenResults(std::move(result), result_vector);

  CONSOLE_BRIDGE_logInform("Has collision: %s", toString(result_vector.empty()).c_str());
  CONSOLE_BRIDGE_logInform("Distance: %f", result_vector[0].distance);
  CONSOLE_BRIDGE_logInform("Link %s nearest point: %s",
                           result_vector[0].link_names[0].c_str(),
                           toString(result_vector[0].nearest_points[0]).c_str());
  CONSOLE_BRIDGE_logInform("Link %s nearest point: %s",
                           result_vector[0].link_names[1].c_str(),
                           toString(result_vector[0].nearest_points[1]).c_str());
  CONSOLE_BRIDGE_logInform("Direction to move Link %s further from Link %s: %s",
                           result_vector[0].link_names[0].c_str(),
                           result_vector[0].link_names[1].c_str(),
                           toString(result_vector[0].normal).c_str());
}

Example Explanation¶

Create Contact Checker¶

  tesseract_collision_bullet::BulletDiscreteBVHManager checker;

There are several available contact checkers.

Recommended

BulletDiscreteBVHManager

BulletCastBVHManager

Alternative

BulletDiscreteSimpleManager

BulletCastSimpleManager

Beta

FCLDiscreteBVHManager

Add Collision Objects to Contact Checker¶

Add collision object in a enabled state¶

Note

A collision object can consist of multiple collision shape.

  CollisionShapePtr box(new Box(1, 1, 1));
  Eigen::Isometry3d box_pose;
  box_pose.setIdentity();

  CollisionShapesConst obj1_shapes;
  tesseract_common::VectorIsometry3d obj1_poses;
  obj1_shapes.push_back(box);
  obj1_poses.push_back(box_pose);

  checker.addCollisionObject("box_link", 0, obj1_shapes, obj1_poses);

Add collision object in a disabled state¶

  CollisionShapePtr thin_box(new Box(0.1, 1, 1));
  Eigen::Isometry3d thin_box_pose;
  thin_box_pose.setIdentity();

  CollisionShapesConst obj2_shapes;
  tesseract_common::VectorIsometry3d obj2_poses;
  obj2_shapes.push_back(thin_box);
  obj2_poses.push_back(thin_box_pose);

  checker.addCollisionObject("thin_box_link", 0, obj2_shapes, obj2_poses, false);

Add another collision object¶

  std::shared_ptr<tesseract_common::VectorVector3d> ch_verticies(new tesseract_common::VectorVector3d());
  std::shared_ptr<Eigen::VectorXi> ch_faces(new Eigen::VectorXi());
  int ch_num_faces = createConvexHull(*ch_verticies, *ch_faces, mesh_vertices);
  second_box.reset(new ConvexMesh(ch_verticies, ch_faces, ch_num_faces));

  Eigen::Isometry3d second_box_pose;
  second_box_pose.setIdentity();

  CollisionShapesConst obj3_shapes;
  tesseract_common::VectorIsometry3d obj3_poses;
  obj3_shapes.push_back(second_box);
  obj3_poses.push_back(second_box_pose);

  checker.addCollisionObject("second_box_link", 0, obj3_shapes, obj3_poses);

Set the active collision object’s¶

  checker.setActiveCollisionObjects({ "box_link", "second_box_link" });

Set the contact distance threshold¶

  checker.setContactDistanceThreshold(0.1);

Set the collision object’s transform¶

  tesseract_common::TransformMap location;
  location["box_link"] = Eigen::Isometry3d::Identity();
  location["box_link"].translation()(0) = 0.2;
  location["box_link"].translation()(1) = 0.1;
  location["second_box_link"] = Eigen::Isometry3d::Identity();

  checker.setCollisionObjectsTransform(location);

Perform collision check¶

Note

One object is inside another object

  ContactResultMap result;
  ContactRequest request(ContactTestType::CLOSEST);
  checker.contactTest(result, request);

  ContactResultVector result_vector;
  flattenResults(std::move(result), result_vector);

Set the collision object’s transform¶

  location["box_link"].translation() = Eigen::Vector3d(1.60, 0, 0);
  result = ContactResultMap();

  checker.setCollisionObjectsTransform(location);

Perform collision check¶

Note

The objects are outside the contact threshold

  checker.contactTest(result, request);
  flattenResults(std::move(result), result_vector);

Change contact distance threshold¶

  checker.setContactDistanceThreshold(0.25);

Perform collision check¶

Note

The objects are inside the contact threshold

  checker.contactTest(result, request);
  flattenResults(std::move(result), result_vector);
